Product Id : ENG3107

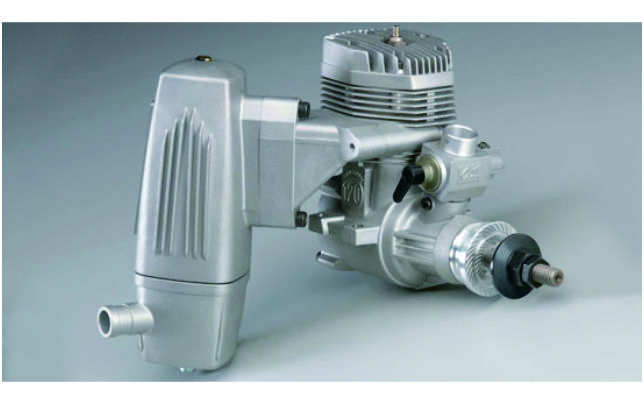

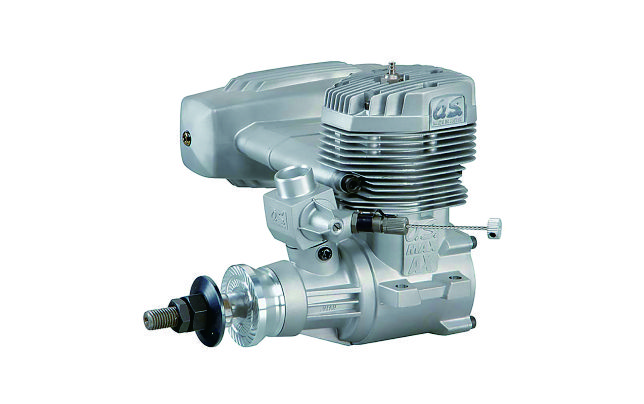

Product Name : OS Engine MAX 120AX 2 stroke for R/C Plane

ORDER NOW

Price : Rp. 5,650,000 Qty :

Description : 1. Product Height : 4.3" (109.2mm) bottom of crankcase to top of cylinder head
2. Prop Range : 15 x 10-12 or 16x8-10
3. RPM Range : 1,800 - 9,500 RPM
4. Engine (Only) Weight : 1.305lbs (592g)

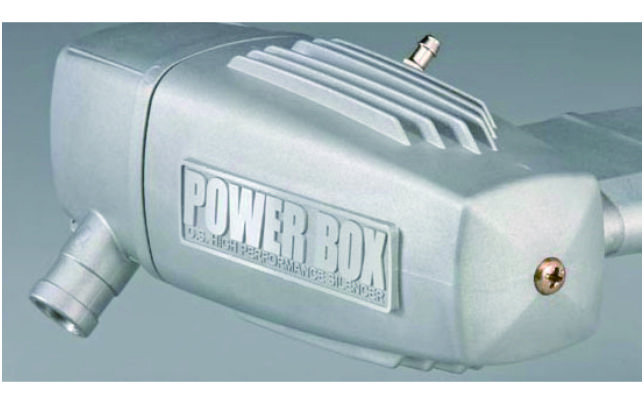

5. Muffler Type : 2-piece aluminum
6. Carb Type : Rotary
7. Displacement : 1.218 cu in (19.96 cc)
8. Oil Type & Content : At least 18% synthetic lubricant
9. Product Length : 3.9" (100.2mm) from back plate to front of drive hub
10. Crankshaft Threads : UNF5/16-24
11. Muffler Weight : 7.07 oz (219.2 g) w/90 deg adapter installed, 7.9 oz (245 g) w/extension installed
12. Cylinders : Single
13. Product Width : 2.6" (67mm) at mounting tabs
14. Plug Type : O.S. #8
15. Stroke : 1.083" (27.5mm)
16. Bore : 1.197" (30 mm)
17. Crankshaft Type : Threaded
18. Power Type : Glow

Category : Glow Engine
Ship Weight : 0.30 Kg / pcs
Min Order : 1 pcs

Price : Rp. 5,650,000
